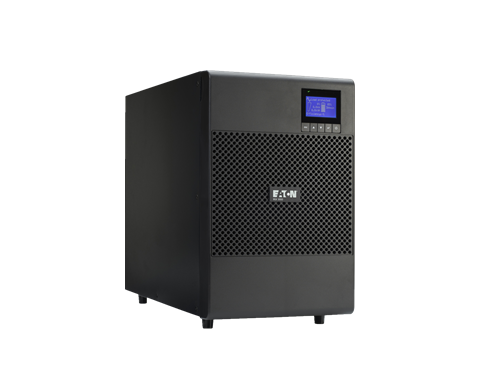

Online double conversion UPS

在線雙轉換UPS

Successor of Eaton 9130 UPS

完全替代PW9130系列UPS

Performance and Availability

性能和可用性

●Double-conversion topology. The Eaton 9SX constantly monitors

雙轉換拓撲。伊頓9SX不斷監控

power conditions and regulates voltage and frequency.

功率條件，調節電壓和頻率。

●The internal bypass allows service continuity in case of internal

內部旁路允許在內部保持服務的連續性。

fault, a maintenance bypass is also available (as option) for

故障，維護旁路也可用(作為選項)。

easy replacement of the UPS without powering down critical

很容易更換UPS而不關機

systems.

系統。

●With a 0.9 power factor the 9SX delivers 28% more power than

使用0.9功率因數，9SX比9 SX提供28%的功率

UPS in its class. It powers more servers than other UPSs with

同級的Ups。它比其他ups擁有更多的服務器。

equivalent VA ratings and lower power factors.

等效VA評級和較低的功率因數。

●Stronger, longer battery life: Eaton ABMB battery management

更強，更長的電池壽命：伊頓ABMB電池管理

technology uses an innovative three-stage charging technique

技術采用了一種創新的三級充電技術。

that extends battery life by up to 50%. 9SX also provides

這使電池壽命延長了50%。9SX還提供

recommended replacement date for batteries.

建議更換電池的日期。

Manageability

可管理性

●The new graphical LCD provides clear information on the

新的圖形液晶顯示提供了關于

UPS's status and measurements on a single screen. Enhanced

Ups在單一屏幕上的狀態和測量。增強型

configuration capabilities are also available.

配置功能也是可用的。

●The 9SX can meter energy consumption. kWh values can

9SX可以測量能源消耗。KWh值可以

be monitored using the LCD or Eaton's Inelligent Power@

使用LCD或Eaton的內置電源監視

Software.

軟件。

●Load segment control enables prioritised shutdowns of

負載段控制允許優先關閉

nonessential equipment to maximise battery runtime for

使電池運行時最大化的非必要設備

critical devices.

關鍵設備。

●9SX offers Serial, USB connectivity, plus an extra slot for an

9SX提供串行USB連接，以及一個額外的插槽

optional communication card. Eaton's Intelligent Powere

可選通訊卡。伊頓智能粉末

Software seamlesly integrates with leading virtualisation

軟件無縫地與領先的虛擬化集成

environments and cloud orchestrations tools.

環境和云編排工具。

Flexibility

靈活性

●One platform, two factors, dozens of choices. Up to 3000VA

一個平臺，兩個因素，幾十種選擇。最多3000 VA

of UPS power is packed into only 2U of rack space. The tower

UPS電源僅裝在2U的機架空間內。塔

option is about the size of a modern, compact PC.

選項大約是一個現代化的，緊湊的個人電腦大小。

●More runtime can be added with up to 4 external hot swappable

可以添加更多的運行時，最多可使用4個外部熱交換。

battery modules, able to run systems for hours if necessary. The

電池模塊，必要時可以運行系統數小時。這個

additional battery modules are automatically recognized by the

其他電池模塊由
